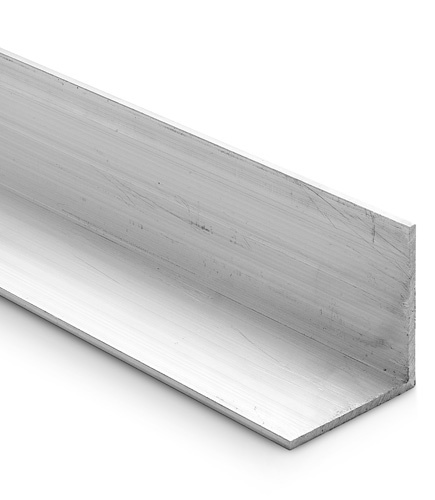

Aluminum angle brackets are profile shapes used to reinforce, flatten or protect the edges of aluminum sheets or plates. Usually L-shaped, they are used for various structural and decorative purposes.
Aluminum angle brackets are used in the construction industry to reinforce corner details indoors and outdoors. For example, they can be used on the inside corners of walls or exterior facades to provide an aesthetic appearance and at the same time increase the durability of the corners. They can also be used in furniture manufacturing, interior decoration and other industrial applications.
These angles are usually produced by the aluminum extrusion method. This process involves melting the aluminum and pouring it into special molds. The result is the desired L-shaped profile. These profiles usually come in different sizes and thicknesses, making them suitable for a variety of projects.
There are several reasons why aluminum angle brackets are preferred. These include the fact that aluminum is lightweight, corrosion resistant, easy to shape and provides an aesthetic appearance. It is also advantageous that aluminum has a long service life and low maintenance requirements.
| A (mm) | B (mm) | SA (mm) | SB (mm) | Kg/m (mm) |
| 10 | 10 | 1,2 | 1,2 | 0,061 |
| 10 | 5 | 1,5 | 1,5 | 0,055 |
| 10 | 10 | 1,5 | 1,5 | 0,075 |
| 10 | 10 | 2 | 2 | 0,098 |
| 15 | 10 | 1,5 | 1,5 | 0,096 |
| 15 | 10 | 2 | 2 | 0,125 |
| 15 | 15 | 1,2 | 1,2 | 0,094 |
| 15 | 15 | 2 | 2 | 0,152 |
| 17 | 17 | 1 | 1 | 0,089 |
| 20 | 10 | 1 | 1 | 0,080 |
| 20 | 10 | 1,5 | 1,5 | 0,116 |
| 20 | 10 | 2 | 2 | 0,152 |
| 20 | 10 | 2,5 | 2,5 | 0,190 |
| 20 | 12 | 1 | 1 | 0,084 |
| 20 | 15 | 2 | 2 | 0,179 |
| 20 | 20 | 1 | 1 | 0,106 |
| 20 | 20 | 1,2 | 1,2 | 0,126 |
| 20 | 20 | 1,5 | 1,5 | 0,157 |
| 20 | 20 | 2 | 2 | 0,206 |
| 20 | 20 | 3 | 3 | 0,300 |
| 25 | 25 | 0,95 | 0,95 | 0,126 |
| 25 | 25 | 1,2 | 1,2 | 0,159 |
| 25 | 25 | 2 | 2 | 0,260 |
| 25 | 25 | 3 | 3 | 0,382 |
| 30 | 10 | 1 | 1 | 0,110 |
| 30 | 10 | 1,5 | 1,5 | 0,157 |
| 30 | 15 | 1 | 1 | 0,119 |
| 30 | 15 | 1,2 | 1,2 | 0,143 |
| 30 | 15 | 2 | 2 | 0,233 |
| 30 | 20 | 0,9 | 0,9 | 0,120 |
| 30 | 20 | 1,2 | 1,2 | 0,159 |
| 30 | 20 | 2 | 2 | 0,260 |
| 30 | 25 | 1,5 | 1,5 | 0,217 |
| 30 | 25 | 2 | 2 | 0,287 |
| 30 | 25 | 3 | 3 | 0,423 |
| 30 | 30 | 1 | 1 | 0,152 |
| 30 | 30 | 1,2 | 1,2 | 0,191 |
| 30 | 30 | 1,5 | 1,5 | 0,238 |
| 30 | 30 | 2 | 2 | 0,314 |
| 30 | 30 | 3 | 3 | 0,463 |
| 30 | 30 | 4 | 4 | 0,607 |
| 31 | 31 | 4 | 4 | 0,629 |
| 35 | 18 | 3 | 3 | 0,406 |
| 35 | 22 | 2 | 2 | 0,298 |
| 35 | 35 | 2 | 2 | 0,369 |
| 35 | 35 | 3 | 3 | 0,545 |
| 35 | 35 | 4 | 4 | 0,715 |
| 36,5 | 5 | 1,5 | 1,5 | 0,163 |
| 36,5 | 10 | 1,5 | 1,5 | 0,183 |
| 40 | 10 | 1,2 | 1,2 | 0,159 |
| 40 | 20 | 1,2 | 1,2 | 0,191 |
| 40 | 20 | 1,5 | 1,5 | 0,238 |
| 40 | 20 | 2 | 2 | 0,314 |
| 40 | 20 | 3 | 3 | 0,463 |
| 40 | 28 | 6 | 6 | 1,008 |
| 40 | 30 | 1,2 | 1,2 | 0,224 |
| 40 | 30 | 1,5 | 1,5 | 0,278 |
| 40 | 35,5 | 4 | 4 | 0,775 |
| 40 | 40 | 1,2 | 1,2 | 0,256 |
| 40 | 40 | 1,5 | 1,5 | 0,318 |
| A (mm) | B (mm) | SA (mm) | SB (mm) | Kg/m (mm) |
| 40 | 40 | 2 | 2 | 0,423 |
| 40 | 40 | 3 | 3 | 0,626 |
| 40 | 40 | 4 | 4 | 0,824 |
| 40 | 40 | 5 | 5 | 1,016 |
| 41,15 | 31,75 | 5 | 5(R4) | 0,920 |
| 42,8 | 10,5 | 1,3 | 1,3 | 0,183 |
| 50 | 16 | 5 | 5(R3) | 0,827 |
| 50 | 20 | 1,2 | 1,2 | 0,224 |
| 50 | 20 | 2,5 | 2,5 | 0,190 |
| 50 | 20 | 1,5 | 1,5 | 0,279 |
| 50 | 30 | 1,2 | 1,2 | 0,256 |
| 50 | 30 | 2 | 2 | 0,423 |
| 50 | 30 | 3 | 3 | 0,626 |
| 50 | 30 | 4 | 4 | 0,824 |
| 50 | 40 | 1,2 | 1,2 | 0,289 |
| 50 | 40 | 2 | 2 | 0,477 |
| 50 | 50 | 1,2 | 1,2 | 0,322 |
| 50 | 50 | 2 | 2 | 0,531 |
| 50 | 50 | 2,5 | 2,5 | 0,661 |
| 50 | 50 | 3 | 3 | 0,789 |
| 50 | 50 | 5 | 5 | 1,287 |
| 50,8 | 25,4 | 3,2 | 3,2 | 0,633 |
| 50,8 | 50,8 | 6,35 | 6,35 | 1,639 |
| 51,2 | 21,2 | 1,2 | 1,2 | 0,230 |
| 53 | 28 | 2 | 2 | 0,428 |
| 55 | 18 | 3 | 3 | 0,569 |
| 60 | 15 | 1,8 | 1,8 | 0,357 |
| 60 | 20 | 1,2 | 1,2 | 0,256 |
| 60 | 20 | 1,5 | 1,5 | 0,319 |
| 60 | 20 | 2 | 2 | 0,423 |
| 60 | 20 | 4 | 4 | 0,824 |
| 60 | 28 | 2,3 | 1,5 | 0,409 |
| 60 | 30 | 2 | 2 | 0,477 |
| 60 | 40 | 1,2 | 1,2 | 0,371 |
| 60 | 40 | 2 | 2 | 0,531 |
| 60 | 40 | 4 | 4 | 1,040 |
| 60 | 40 | 5 | 5 | 1,287 |
| 60 | 45 | 15 | 15 | 3,670 |
| 60 | 60 | 1,5 | 1,5 | 0,482 |
| 60 | 60 | 1,5 | 1,5 | 0,482 |
| 60 | 60 | 3 | 3 | 0,951 |
| 60 | 60 | 5 | 5 | 1,558 |
| 60 | 60 | 6 | 6 | 1,854 |
| 70 | 20 | 2 | 2 | 0,477 |
| 70 | 40 | 4 | 4 | 1,149 |
| 70 | 50 | 2 | 2 | 0,640 |
| 70 | 50 | 3 | 3 | 0,951 |
| 70 | 70 | 5 | 5 | 1,816 |
| 75 | 50 | 5 | 5 | 1,626 |
| 76 | 76 | 6 | 6 | 2,374 |
| 80 | 20 | 1,2 | 1,2 | 0,321 |
| 80 | 20 | 1,4 | 1,4 | 0,373 |
| 80 | 20 | 2 | 2 | 0,531 |
| 80 | 30 | 1,3 | 1,3 | 0,383 |
| 80 | 40 | 1,5 | 1,5 | 0,482 |
| 80 | 40 | 4 | 4 | 1,257 |
| 80 | 40 | 6 | 6 | 1,865 |
| 80 | 80 | 6 | 6 | 2,504 |
| 80 | 80 | 8 | 8 | 3,295 |
| 80 | 80 | 10 | 10(R15) | 4,065 |
| A (mm) | B (mm) | SA (mm) | SB (mm) | Kg/m (mm) |
| 82,55 | 63,5 | 12,7 | 12,7 | 4,589 |
| 89 | 89 | 6,5 | 6,5 | 3,021 |
| 90 | 40 | 3 | 3 | 1,033 |
| 90 | 60 | 3 | 3 | 1,195 |
| 90 | 90 | 5 | 5 | 2,371 |
| 100 | 20 | 1,2 | 1,2 | 0,386 |
| 100 | 20 | 1,4 | 1,4 | 0,449 |
| 100 | 20 | 2 | 2 | 0,640 |
| 100 | 20 | 3 | 3 | 0,951 |
| 100 | 40 | 2,5 | 2,5 | 0,932 |
| 100 | 50 | 2 | 2 | 0,802 |
| 100 | 50 | 4 | 4 | 1,583 |
| 100 | 60 | 6 | 6 | 2,504 |
| 100 | 60 | 8 | 8 | 3,295 |
| 100 | 60 | 10 | 10 | 4,065 |
| 100 | 70 | 10 | 10 | 4,336 |
| 100 | 75 | 7 | 7 | 3,186 |
| 100 | 100 | 10 | 10 | 5,149 |
| 110 | 60 | 3 | 3 | 1,358 |
| 110 | 90 | 10 | 10(R20) | 4,878 |
| 115 | 65 | 10 | 10 | 4,607 |
| 120 | 120 | 4 | 4 | 2,558 |
| 150 | 20 | 2 | 2 | 0,911 |
| 190 | 20 | 2 | 2 | 1,227 |
